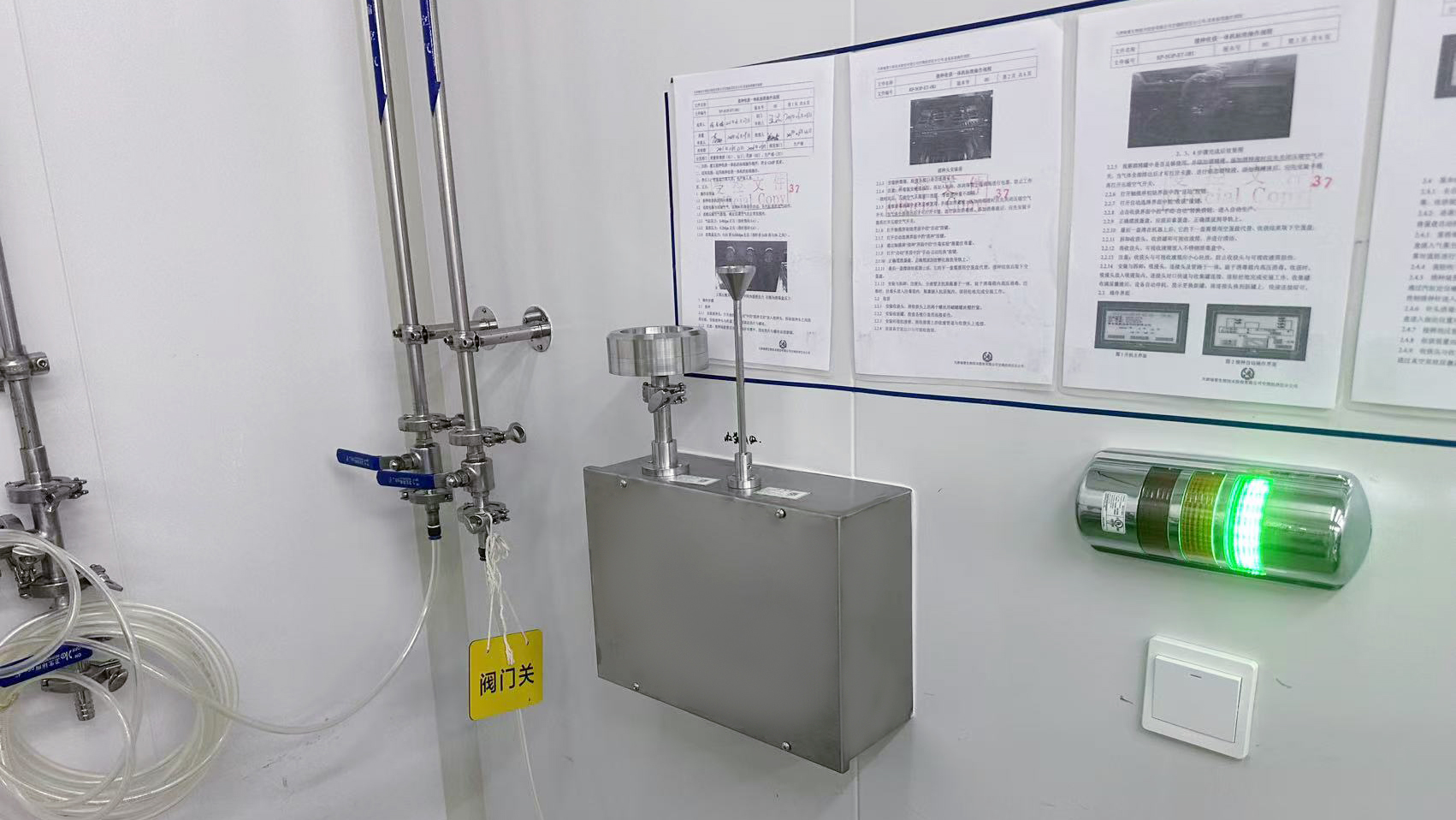

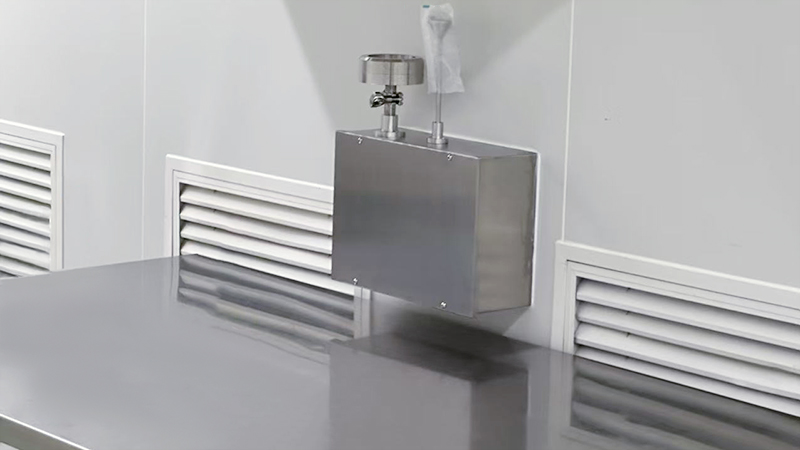

Online Monitoring Particle Counter System

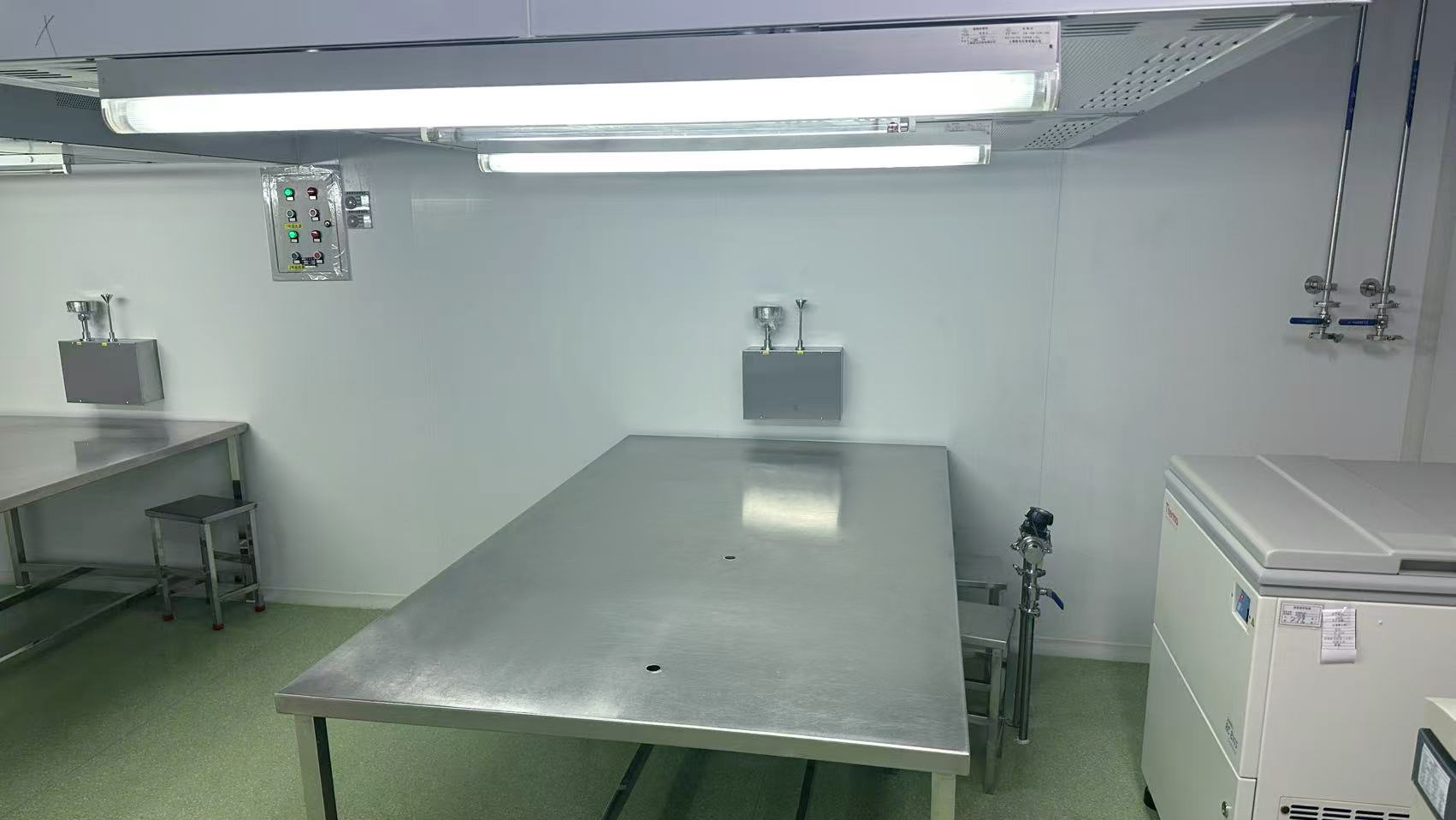

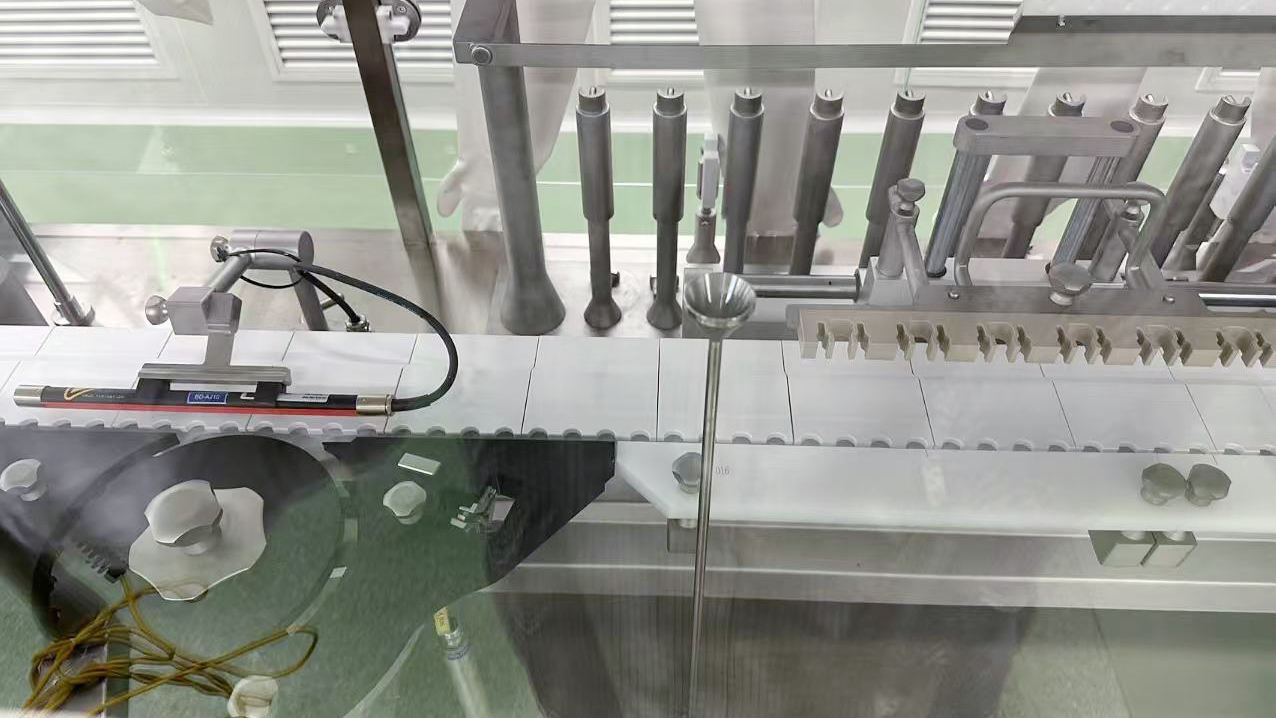

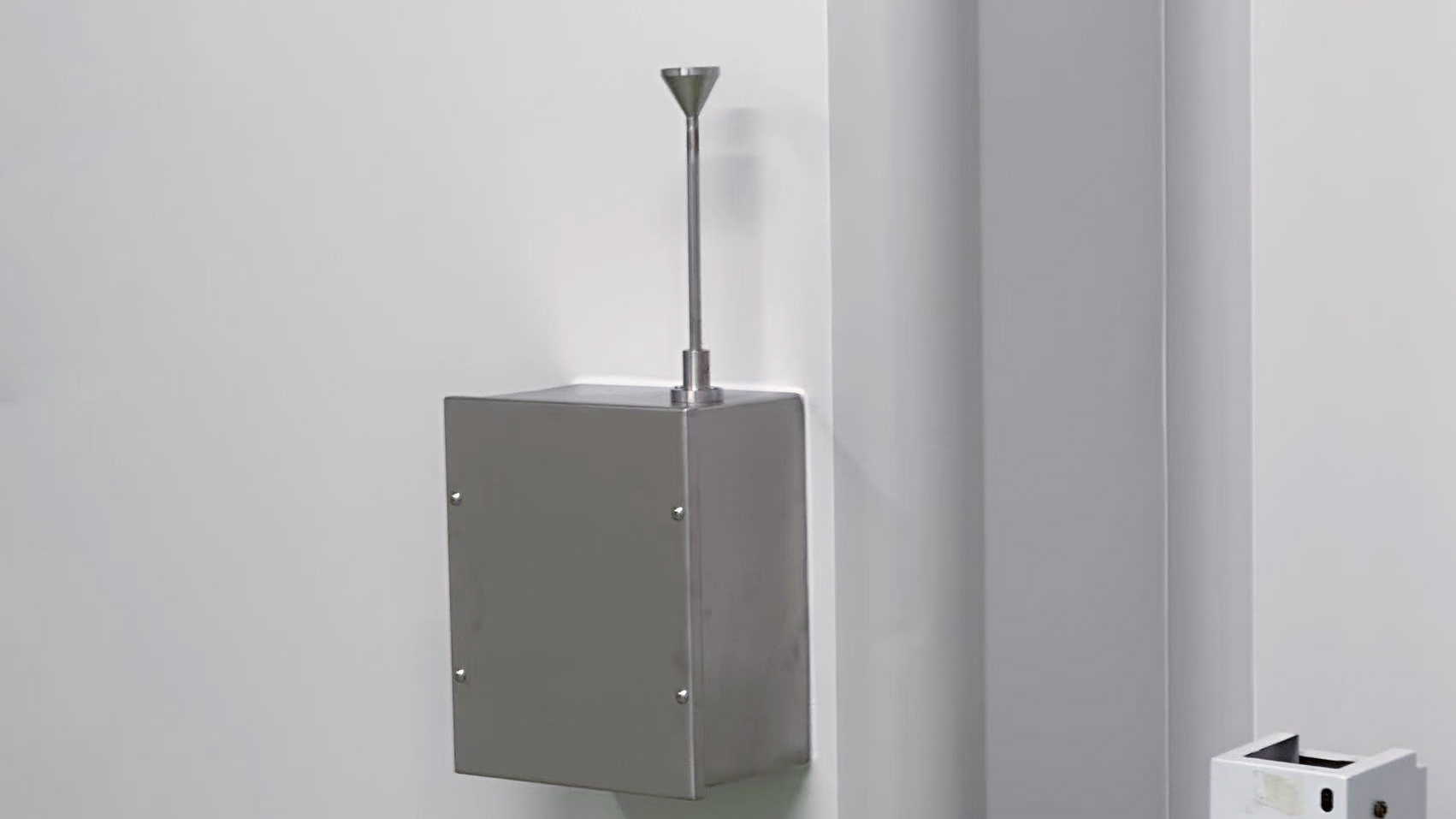

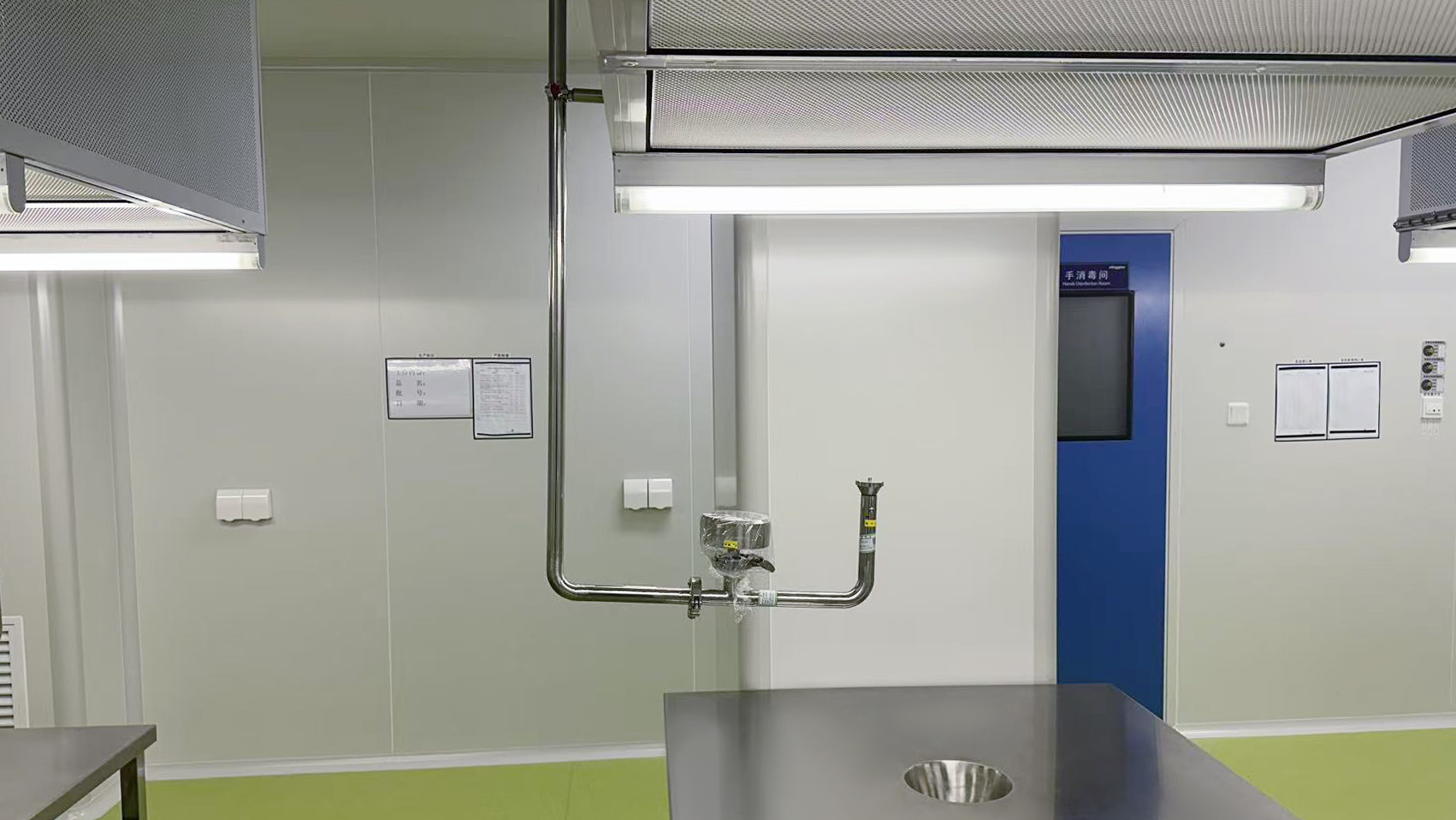

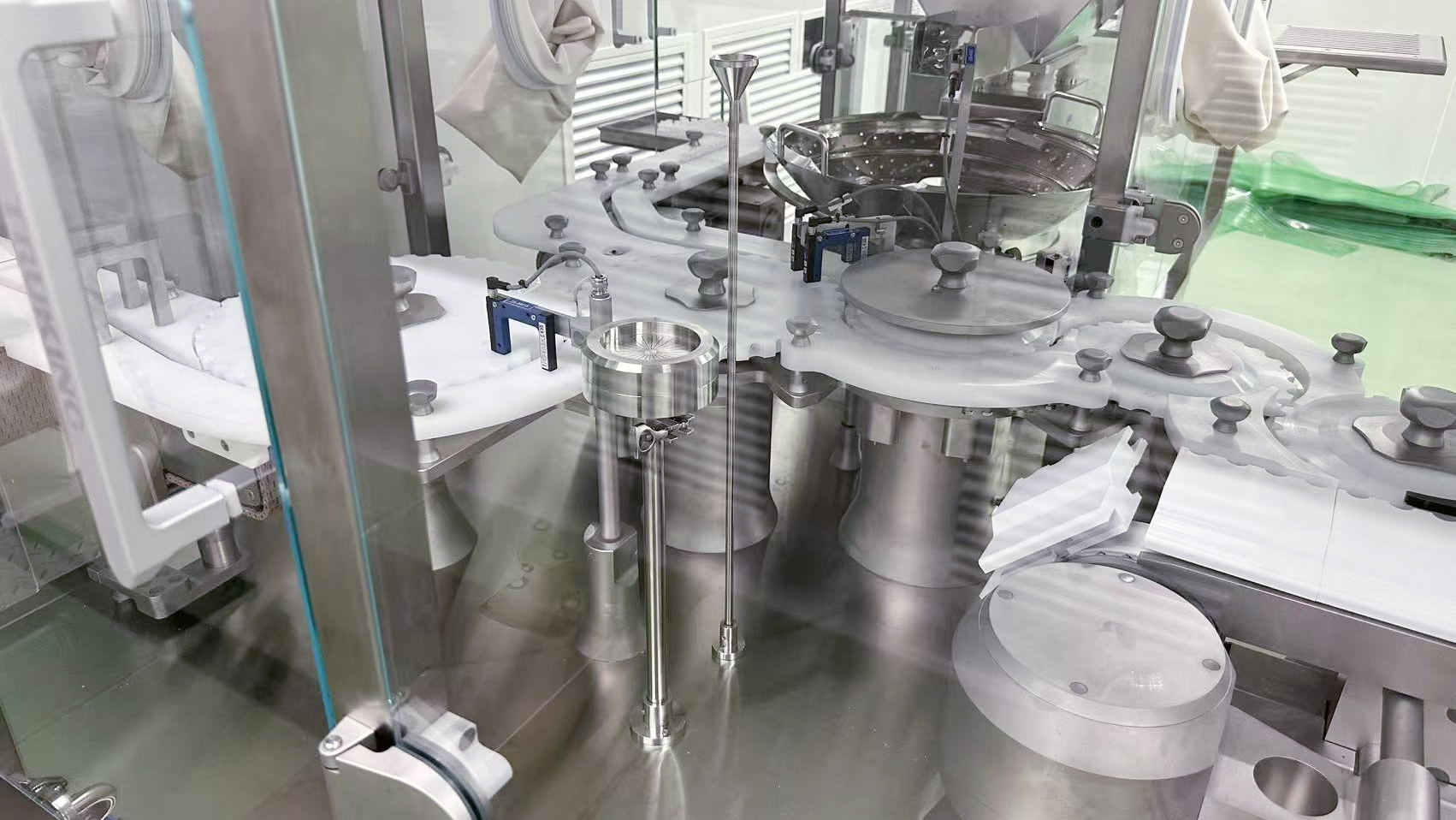

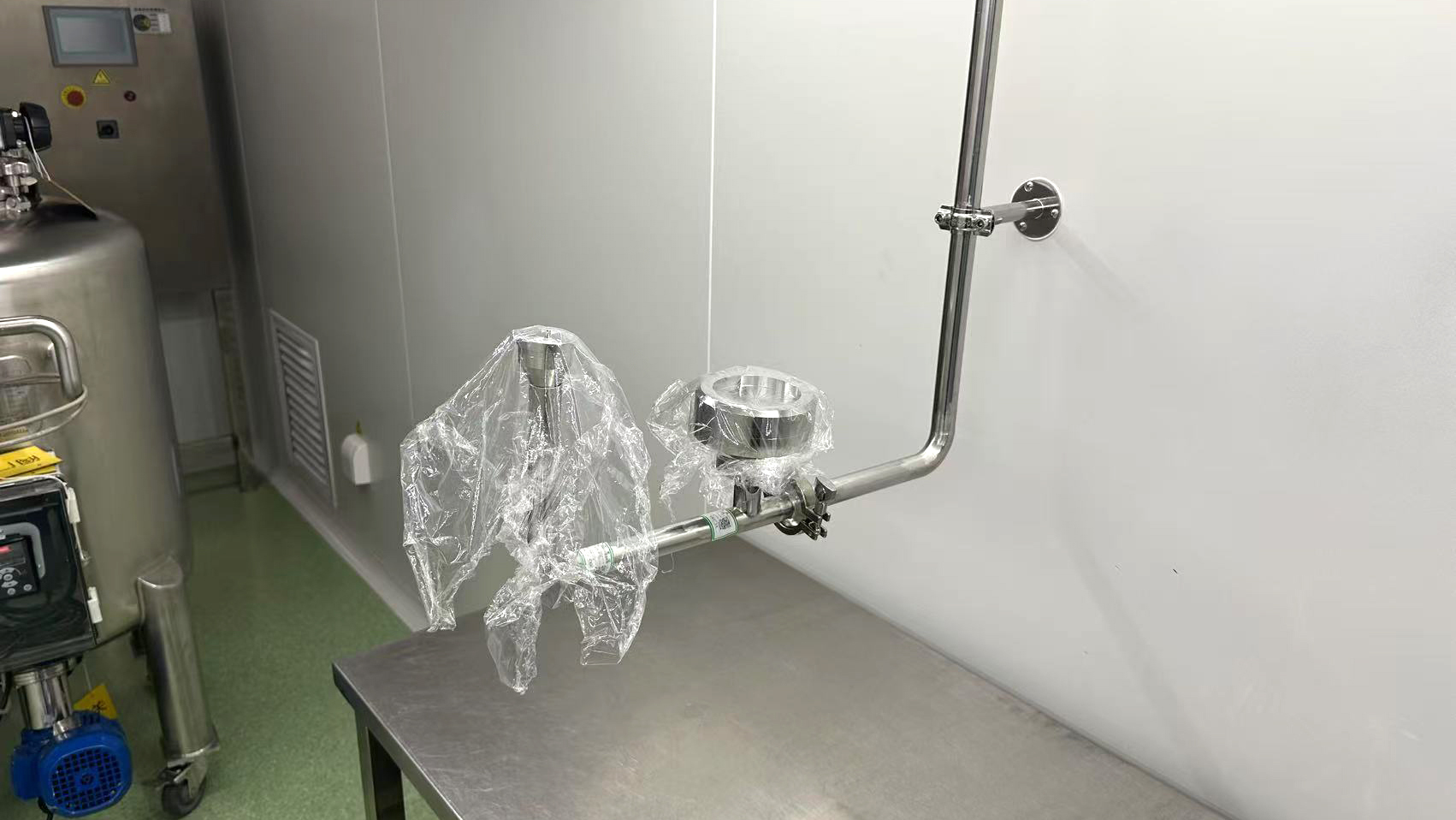

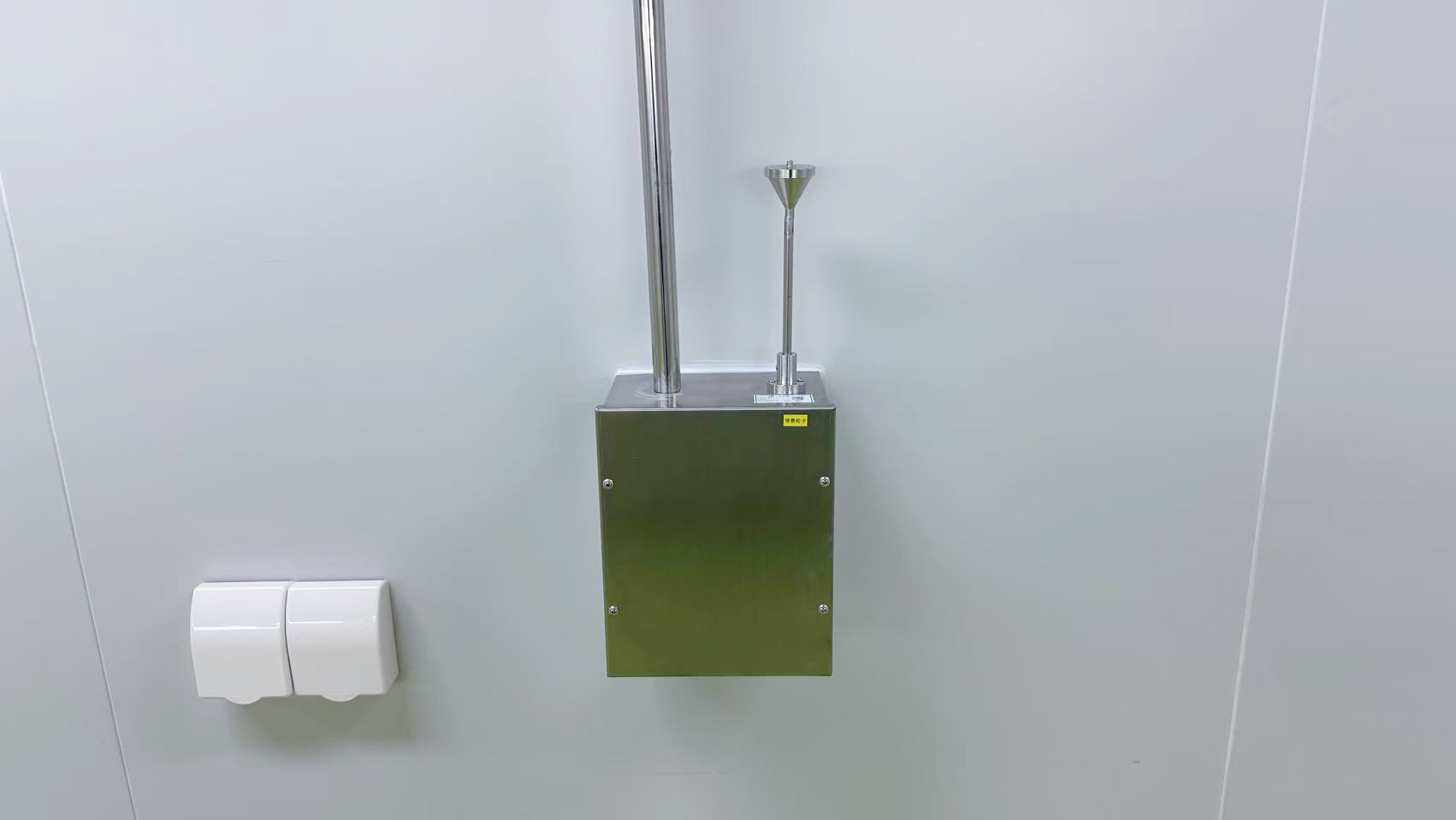

- Online monitoring partice counter system is used to record the presence of airbore suspended particles in key areas of the production linet can automaticaly and continuously monitor and record the partice size and quantity distribution of suspended particdesin the monitored ambient air,while generating reports.

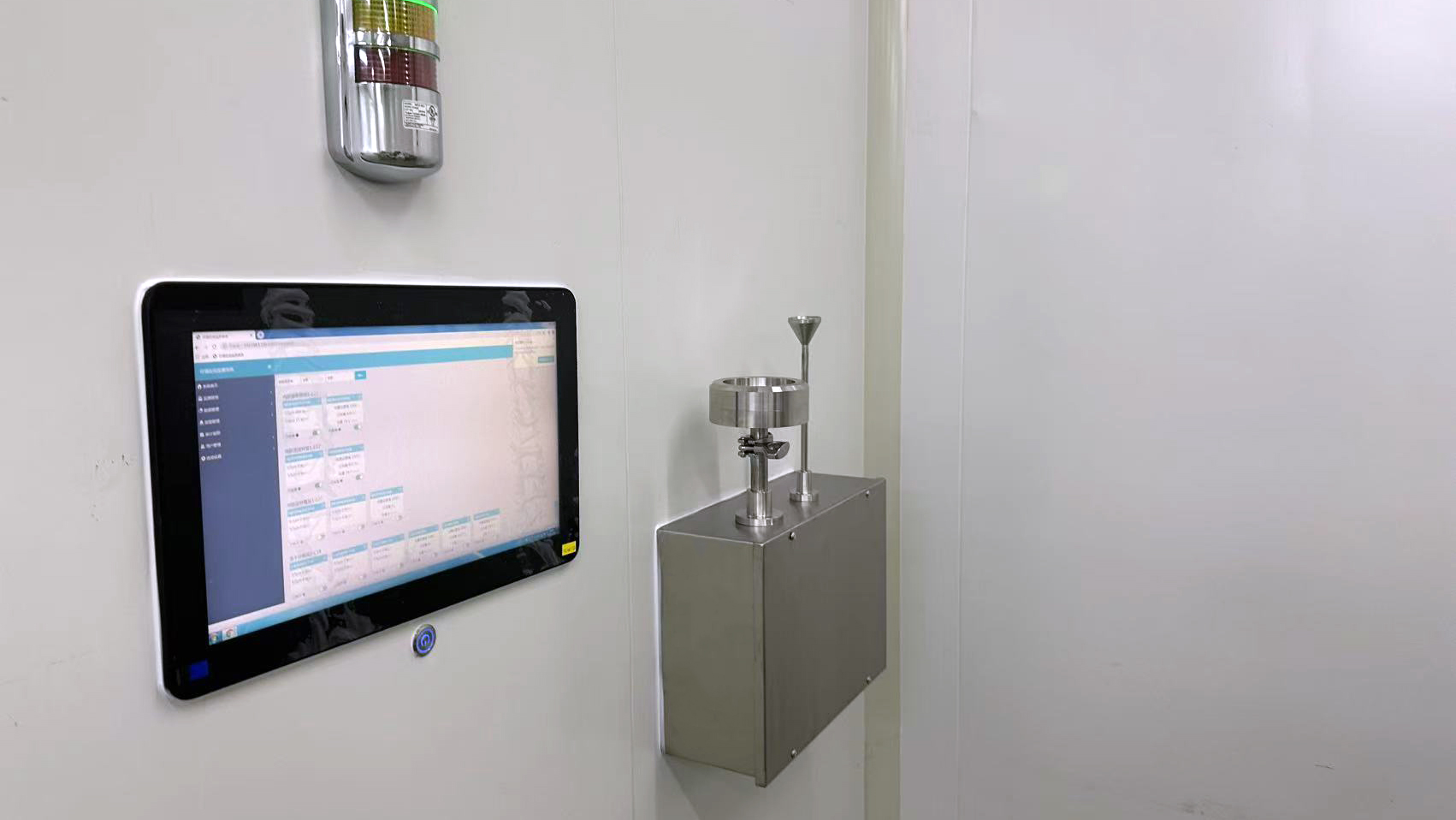

When the state of dust partices in the monitored environment exceeds the warning line and deviation correction line, the system can automatically trigger an audible and visual alarm to notify relevant personnel to handle it,thereby helping to ensure that the particle state in the monitored critical environment is in a normal state to ensure the smooth progress of production.
Product Description
Product Advantages
1. A powerful software system that is compatible with sensors from all over the world, such as lighthouse, METONE,PMS... freeupgrade.
2. The software system has an open data interface and can be easily connected to users' MES/SCADA and other systems.
3. The software fully complies with the functions of 21CFR and part11 regulations.
4.Powerful user management function, with over 1000 user management permission settings
5.With real-time curve, data and historical curve data functions available for selection.
6.Remote monitoring 7/24 real-time monitoring data report.
7.Remote calibration, fast and flexible, without the need for disassembly and return to the factory.
8. HJCLEAN Software System Lifetime Free Upgrade.
Performance Parameters
| Model/ Parameter | Y09-6S | REMOTE 3016 | Y09-6S/T | Y09-SS | REMOTE 5102F | REMOTE 5102P | REMOTE 3106P |
| Detect particle size | 0.5,5.0μm | 0.3,5.0,1.0,2.0,5.0,10μm | 0.5,5.0μm | 0.5,5.0μm | 0.5,5.0μm | 0.5,5.0μm | 0.3,5.0,1.0,2.0,5.0,10μm |
| Sampling flow | 0.1CFM (2.83L/min) | 1.0CFM (28.3L/min) | |||||
| Overall dimension (L* W *H)mm |
160*120(+air nozzle 25) *68 |
214*115 (+air nozzle25) *50 | 214*115 (+air nozzle25) *50 |
φ80*260 | nozzle 25)* 140* 100 (+ air 64 |
140*100*64 | |
| Weight | 1.3kg | 1.5kg | 1.3kg | 2.2kg | 1.6kg | 2.2kg | |
| Maximum power consumption | 20W | 8W | 8W | 50W | |||
| Power supply | DC12V±10% | 24V±10% | |||||
| Sampling pumps | Built-in pump, (brand: Thomas) | External pump, centralized sampling | Built-in pump | ||||
| Detection unit | Pcs/ft3 | ||||||
| Concentration error | 30% | ||||||
| Repeatability | ≤10% | ||||||
| Measurement accuracy | ±10% | ||||||
| Self-cleaning time | ≤10min | ||||||
| Output mode | RS485 | ||||||
| Light source and life | Semiconductor laser, life greater than 30000h | ||||||
| Environment | Temperature: 10-30°C, humidity: 20-75%; Atmospheric pressure: 86kPa-106kPa | ||||||
