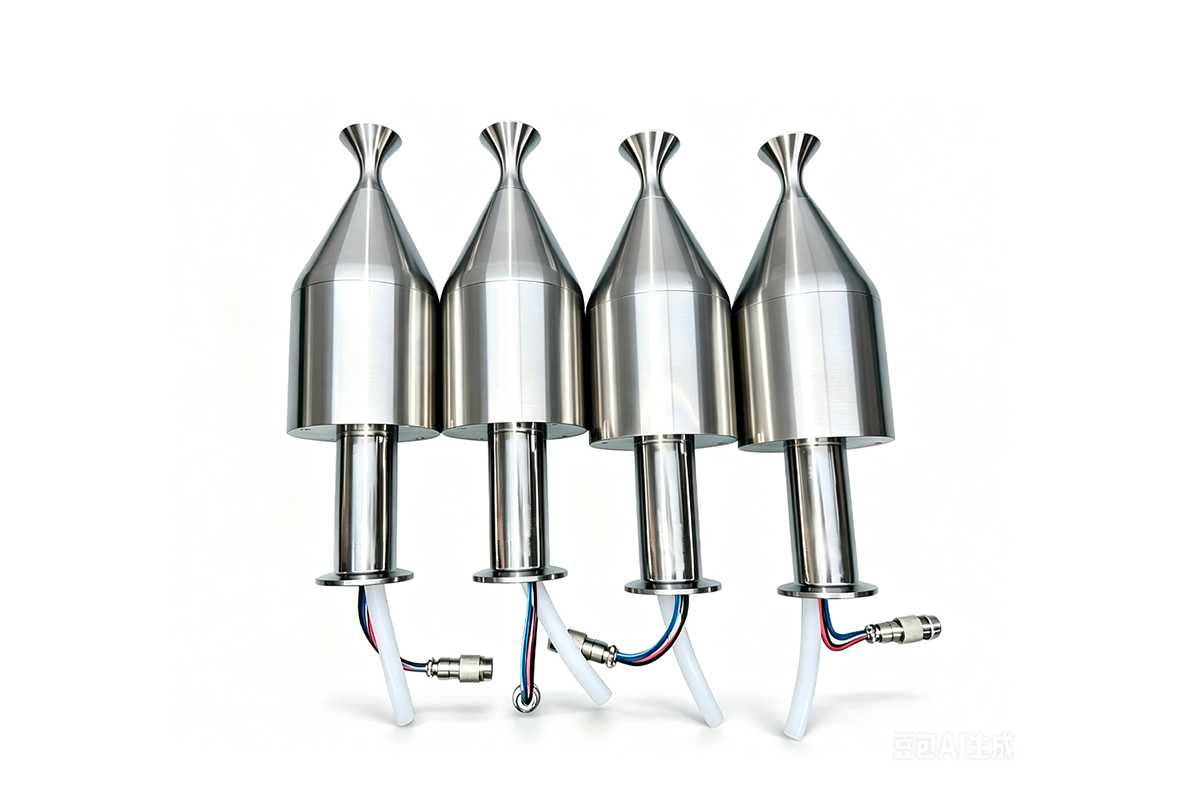

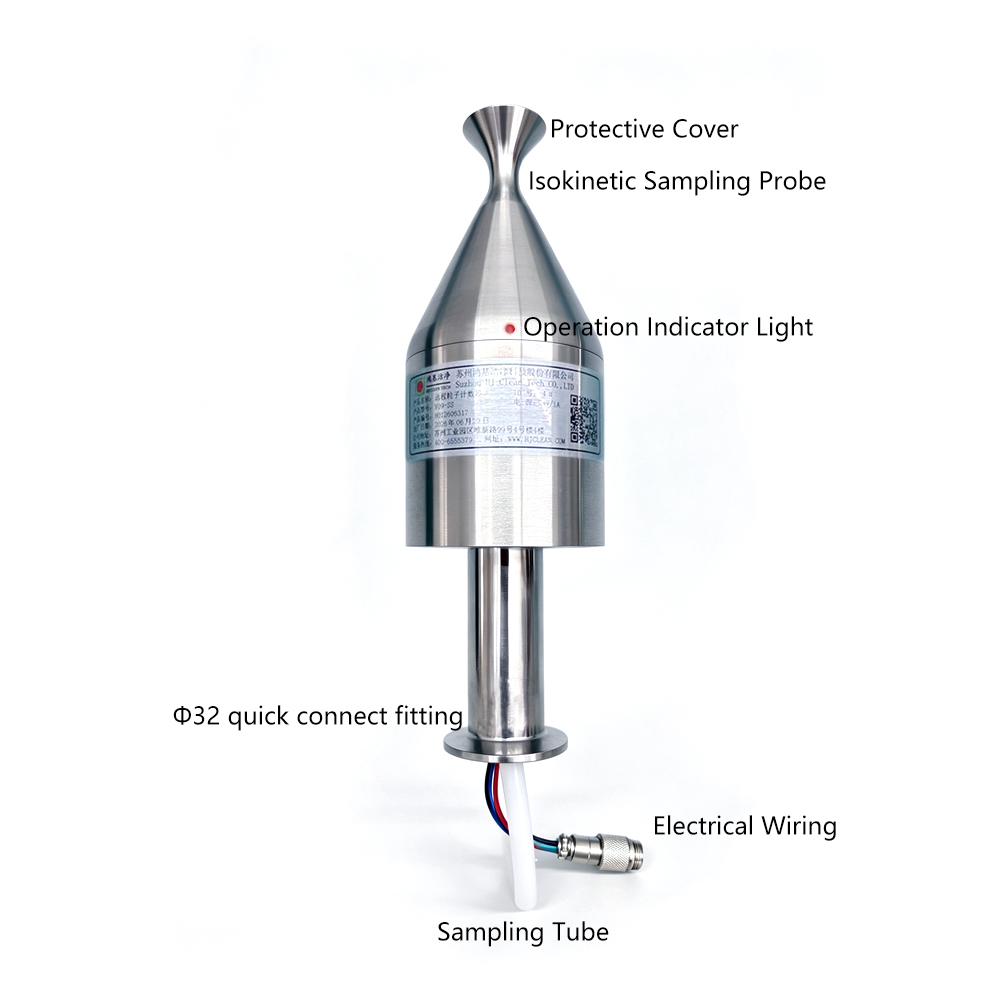

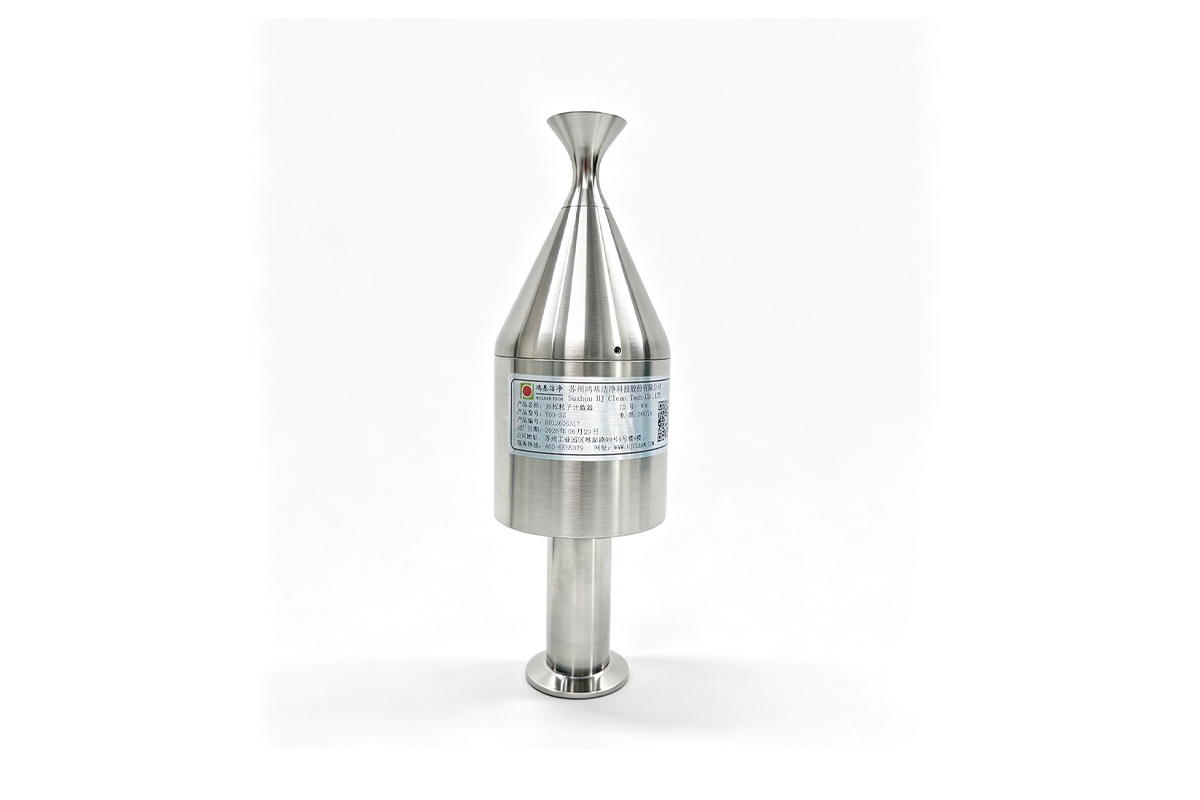

Y09-SS airborne particle counter
- Y09-SS online laser dust particle counter is used to measure the size and number of dust particles per unit volume of air in a clean environment, and transmit the corresponding particle number to the host computer through MODBUS485 communication. It can control the clean environment with cleanliness level of 100,000 to 100. This instrument uses imported semiconductor laser light source, small size, light weight, high detection accuracy, computer control, as long as the instrument is powered
Product Description
Introduction to Counter Application
The online airborne particle counter is a system that measures the size and quantity of airborne particles contained in a unit volume of air in a clean air environment.This online particle counter adopts a new international sensor for detecting the concentration of airborne particles in the air,it is a high-tech product integrating optics and laser technology electronic technology, computer technology, precision machinery, aerodynamics, and other disciplines.It is characterized by high measurement accuracy, reasonable detection, stable performance,multiple functions, unique modeling, small size, light weight,easy installation, It is mainly used for online monitoring of cleanliness in clean environments，evaluating the change trend of ambient air dust particles, online monitoring, early warning, and alarming of ambient air quality and fugitive dust, etc..This transmitter is designed to detect particle size classes and sampling methods in accordance with international standards (ISO14644, EU-GMP), and its performance indicators comply with national standards and national metrological verification regulations,It is widely used in online environmental monitoring in pharmaceutical, microelectronics, optics,medicine and health, biological products, atmospheric analysis, aerospace, and other departments.
| Model/Parameter | Y09-SS |
| Detect particle size | 0.5,5.0μm |
| Sampling flow | 28.3L/min |
| Overall diemensions | φ80*260 |
| Weight | 2.2kg |
| Maximum power consumption | 8W |
| Power supply | DC12V+10% |
| Sampling pumps | Built-in pump, (brand: Thomas) |
| Detection unit | Pcs/ft³ |
| Concentration error | 30% |
| Repeatability | ≤10% |
| Measurement accuracy | ±10% |
| Self-cleaning time | ≤10min |
| Output mode | RS485 |
| Light source and life | Semiconductor laser,life greater than 30000h |
| Environment | Temperature: 10–30°C, humidity: 20-75%; Atmospheric pressure: 86kPa-106kPa |
