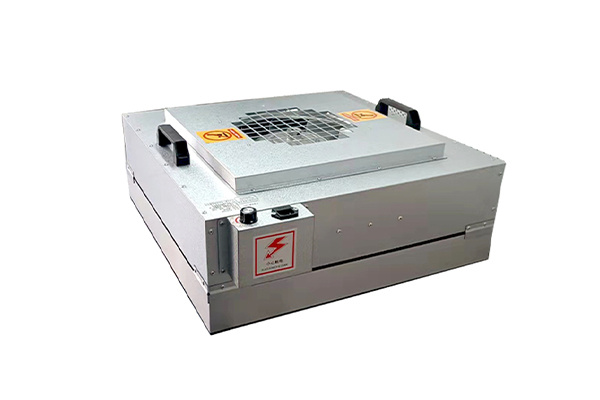

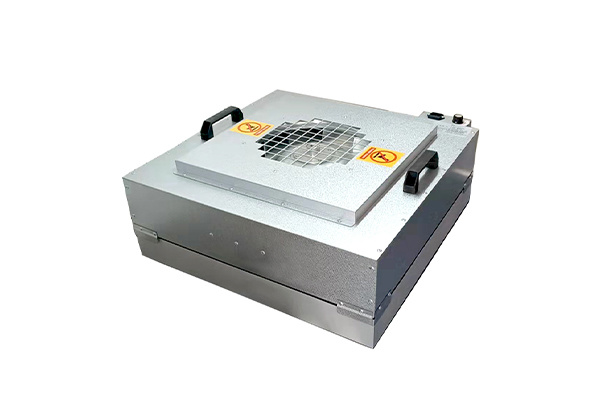

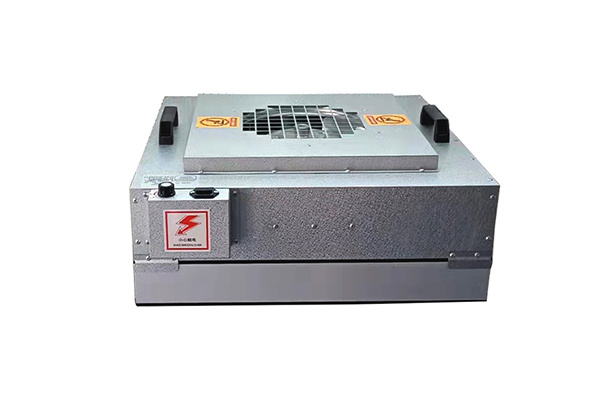

FFU series fan filter unit
- The FFU series fan filter unit adopts new American technology and is suitable for obtaining a clean environment of 100-1 in a 10000-1000 environment. It provides high-quality clean air for clean air showers and micro-environments of different sizes and different cleanliness levels. In the new clean room, clean workshop or renovation and renovation, it can not only improve the cleanliness level, reduce noise and reduce vibration, but also greatly reduce the cost.
Product Description
Overview
The FFU series fan filter unit adopts new American technology and is suitable for obtaining a clean environment of 100-1 in a 10000-1000 environment. It provides high-quality clean air for clean air showers and micro-environments of different sizes and different cleanliness levels. In the new clean room, clean workshop or renovation and renovation, it can not only improve the cleanliness level, reduce noise and reduce vibration, but also greatly reduce the cost. It is an ideal component for a clean environment.
Main Feature
• Particularly low vibration and low noise.
• Excellent uniform air distribution performance.
• The wind speed is automatically constant or adjusted in stages.
• The fan case and the filter are separated, easy to replace and disassemble.
• The filtration efficiency is 99.99%@0.3μm-99.99999%@0.12μm.
Technical Parameter
| series | Dimensions (mm) | Rated air volume (m3h) | Power consumption (W) | Noise (dB) | ||
| long | width | high | ||||
| FFU 2/2 | 610 | 610 | 280 | 600 | 110 | W52db(A) @0.3m/s |
| FFU 3/2 | 915 | 610 | 300 | 900 | 160 | |
| FFU 4/2 | 1175 | 575 | 320 | 1000 | 280 | |
