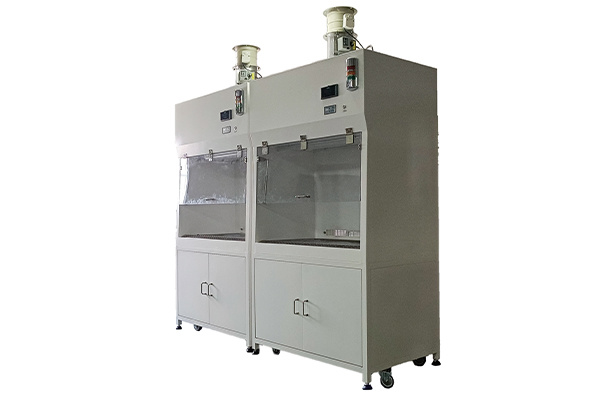

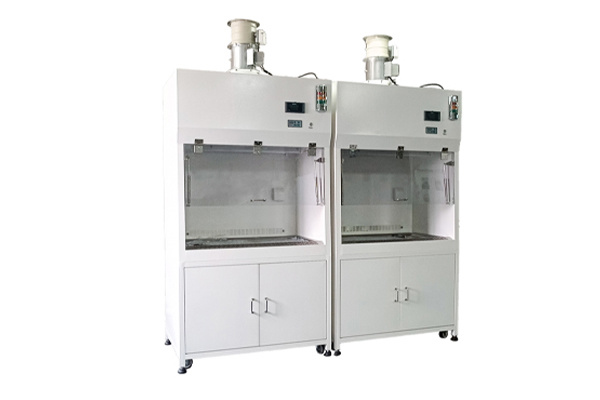

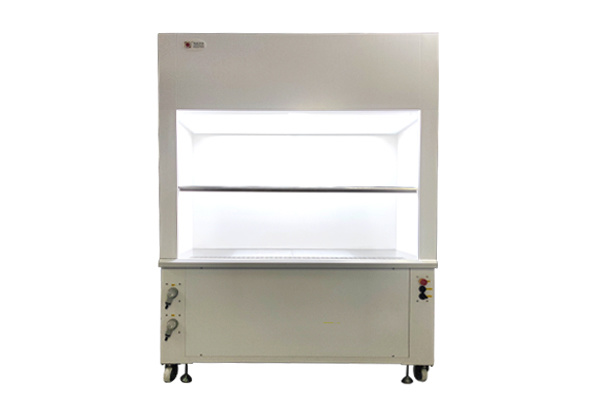

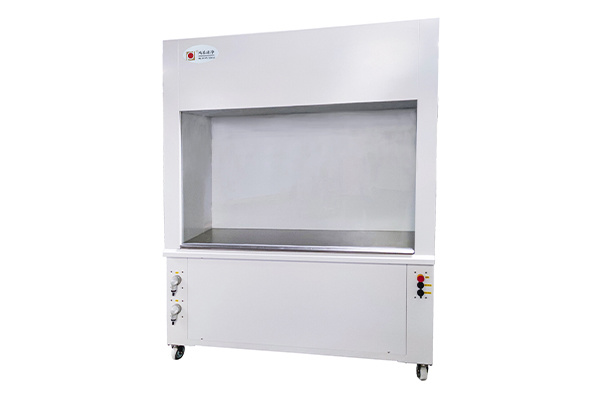

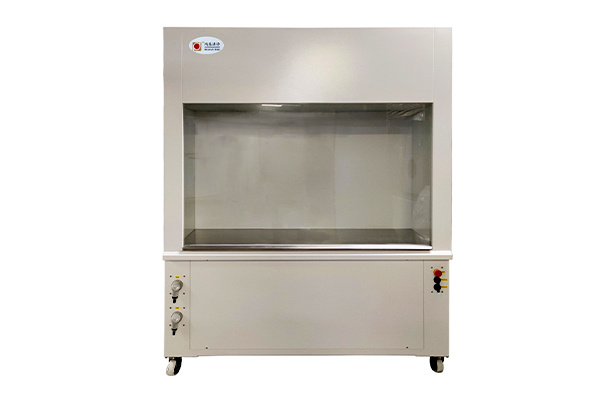

Fume Hood
- It is widely used in scientific research, biological & chemical experiment, electron, precise apparatus, instrument and so on. To Control exhausting the organic solvent and gas with poisonous、deleterious、flammable, to protect operator .
Product Description
Product introduction
It is widely used in scientific research, biological & chemical
experiment, electron, precise apparatus, instrument and so on.
To Control exhausting the organic solvent and gas with
poisonous、deleterious、flammable, to protect operator .
Performance Parameter
| Parameter\Model | TGH-1200 | TGH-1500 | TGH-1800 |
| Air displacement | 1200m³ /h | 1500m³ /h | 2000m³ /h |
| Air tightness | 500Pa leakage rate≤10%(in 30min) | ||
| Equiblast air volume | ≥0.4m/s | ||
| Noise | ≤62dB(A) | ||
| Half peak value of shaking of shaking | ≤4μm | ||
| Illumination | ≥300Lx | ||
| Power Supply | AC220V50Hz | ||
| Max. power consumption | 0.4KW | 0.6KW | 0.8KW |
| Weight | 150kg | 200kg | 250kg |
| Dimension of working area | 1000*650*800 | 1300*650*800 | 1600*650*800 |
| Overall dimension | 1200*800*2350 | 1500*800*2350 | 1800*800*2350 |
| Fluorescent lamp | 30W*2 | 40W*2 | 40W*3 |
