PRODUCT INTRODUCTION
A2 type biosafety cabinet: 70% of the air is recycled after filtration,and 30% of the air can be filtered and discharged outdoors orconnected to the exhaust system.B2 type biosafety cabinet: 100% of the air is filtered and thendischarged to the outdoor or connected to the exhaust system. Theexhaust pipeline uses an actuator PD control valve.Mainly used for drugs and substances that may cause occupationalexposure hazards or hazards, including tumor chemotherapy drugs,cytotoxic drugs, toxic chemicals, etc...

Structural Features
The streamlined luxury overall design, with a 10 inclined front, makes the operatormore comfortable.The hand rest integrated with the work surface is slightly higher than the work surface.The front intake adopts air curtain protection technology to form a clean air curtain,effectively preventing the formation of countercurrent and turbulent air flow.Removable operation table, equipped with stainless steel lifting handle and supportframe, cleaning and maintenance is more convenient.The working area is all made of SUS stainless steel, and the rounded corner inner tankhas good sealing at one time.
The inner wall of the working area is equipped with splash-proof safety sockets on bothsides, and water and gas valves are equipped on the left and right sides to take over thepassage Two each, more flexible to use.The explosion-proof tempered glass of the front window can be completely cleanedinside and outside, without any unclean places.

Safe and reliable
The outer box body is electrostatic sprayed with high-quality cold-rolled steel plate, which has strongcorrosion resistance and can effectively inhibit the growth of bacteria on the surface of the cabinet. Itcan also be made of all stainless steel SUS304.Double-layer box surrounded by negative pressure, strict cabinet leakage test, to ensure that thecabinet has no leakage under the condition of 500Pa.Negative pressure double layer box, strict cabinet leakage detection, ensuring that the cabinet is freeof any leakage under the condition of 500Pa.UV lamps, front windows, lighting, fan safety interlocks, prevent the leakage of ultraviolet rays andpollution, ensure the safety of personnel operation and environment.In the event of unexpected power failure, it can return to the pre-power operation state after restoringthe power supply to fully protect the safety of personnel.

Automatic control function

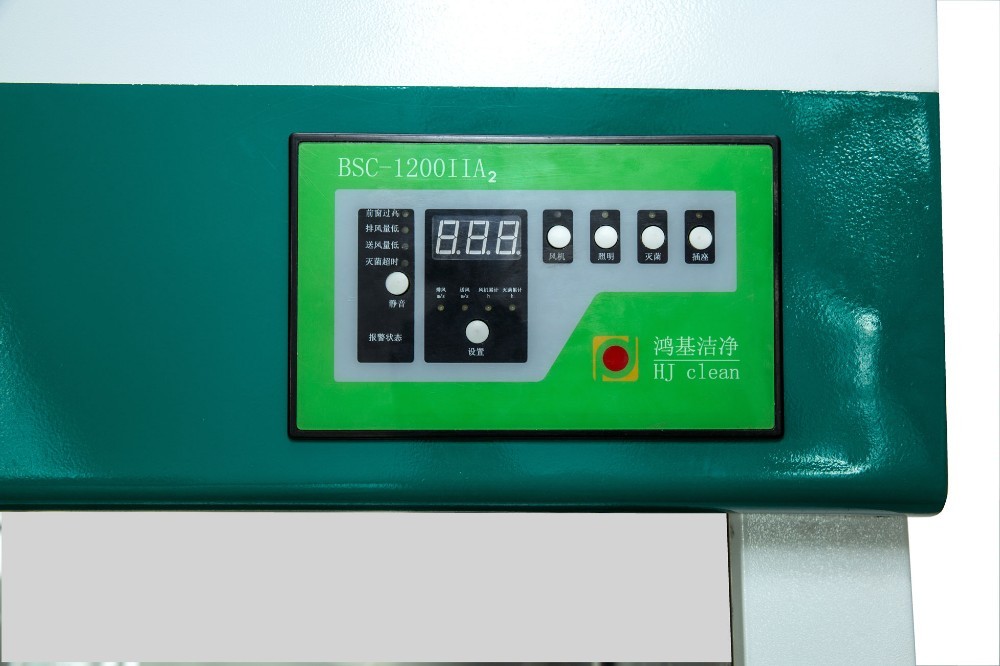

When the experimental process needs to be paused, there is no need to shut down the machine.Closing the front window automatically enters a low speed energy-saving operation state, maintainingthe cleanliness of the operating area.HMI, real-time display of wind speed and filter life, and monitoring of the operating status of the safetycabinet, while providing an alarm function.The ultraviolet lamp has an setting timing function, which can be turned on and off according setting.A2 type safety cabinet can be equipped with intelligent exhaust hood when customers need externalexhaust duct. When the air volume of the external exhaust system changes, the exhaust hood can beused to ensure the constant exhaust air volume of the safety cabinet.

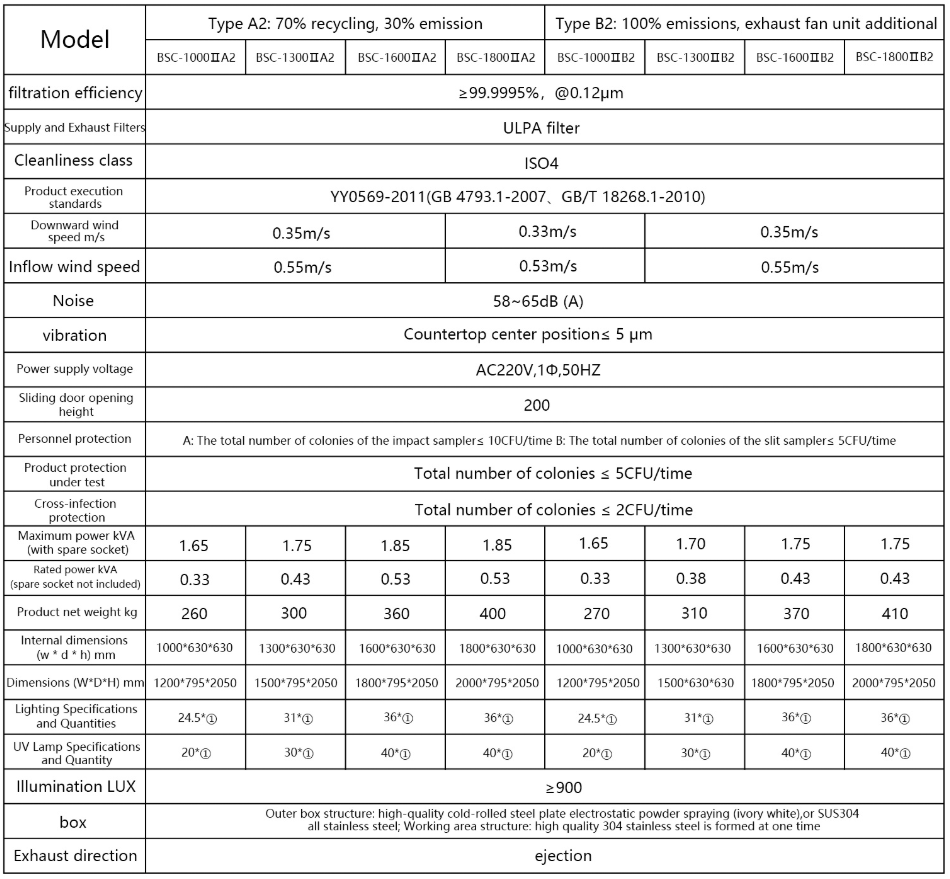

PERFORMANCE PARAMETERS
